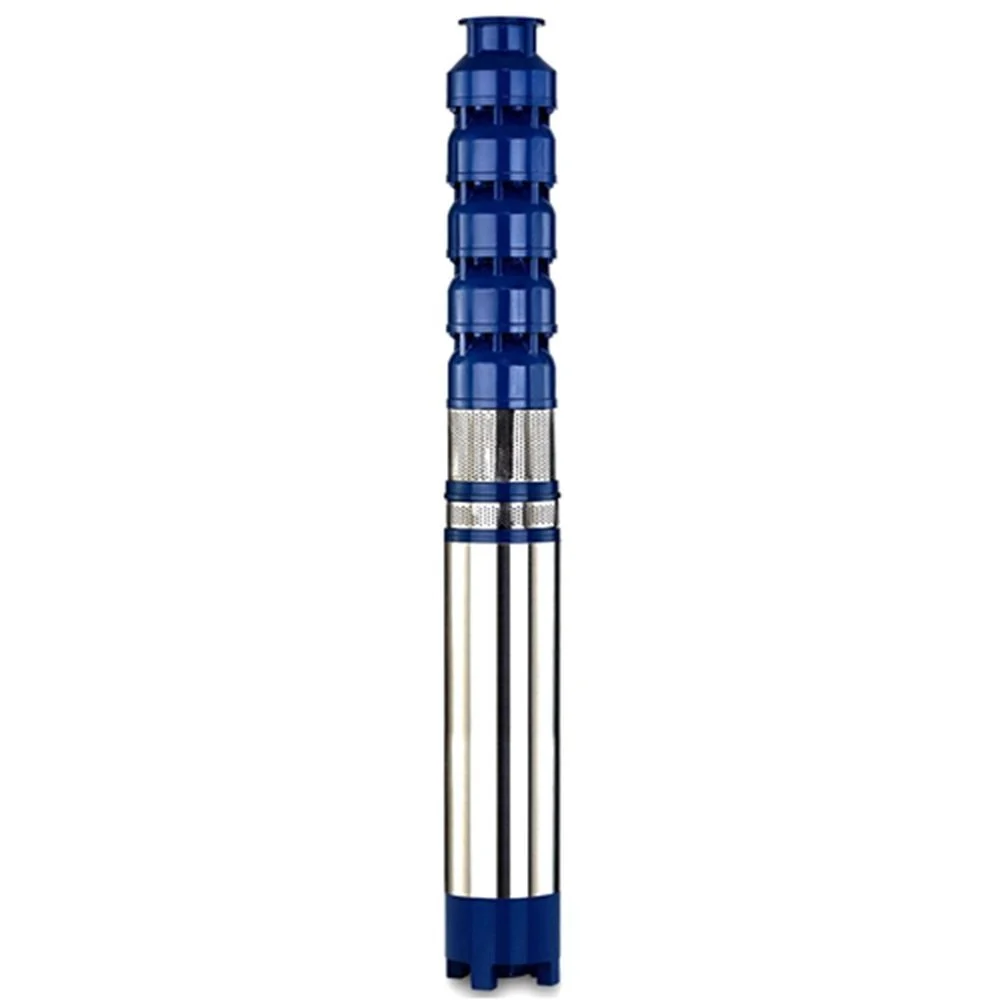

V-4 Industrial Grade Submersible Pump

SKU: V4-700 In Stock

The V-4 submersible pump series delivers powerful performance for demanding commercial and industrial applications. Featuring heavy-duty stainless steel construction and advanced engineering for maximum efficiency and durability.

Power Options:

Voltage Power Range
240V, 50Hz AC Single Phase 0.5 HP to 5.0 HP
420V, 50Hz AC Single Phase 1.0 HP to 7.5 HP

Key features include:

  • 30% lower power consumption than conventional pumps
  • Complete stainless steel body construction
  • Advanced sand and mud proof design
  • Special voltage fluctuation protection
  • High-efficiency impeller design

Technical Specifications

Parameter Specification
Speed 2800 RPM
Max. Discharge 350 LPM
Min. Discharge 30 LPM
Per Stage Head 15 Feet
Operating Temperature 0°C to 40°C
Max. Submersion Depth 100 meters
Body Material Stainless Steel (316 Grade)

Special Features

Energy Saving

30% lower power consumption reduces operating costs

Sand Protection

Special sand guard prevents particle ingress

Voltage Stable

Performs reliably even with voltage fluctuations

Heavy Duty

Industrial-grade components for long service life

Applications

Industrial Water Supply

Factory water systems and processing plants

Commercial Buildings

High-rise buildings, hotels, and shopping malls

Agricultural Irrigation

Large-scale farm and plantation irrigation

Municipal Water

Community water supply systems

V-Series Comparison

Feature V-3 Model V-4 Model
Max Power 1.5 HP 7.5 HP
Max Discharge 90 LPM 350 LPM
Head per Stage 10 Feet 15 Feet
Voltage Options Single (240V) Dual (240V/420V)
Ideal For Residential Commercial/Industrial
