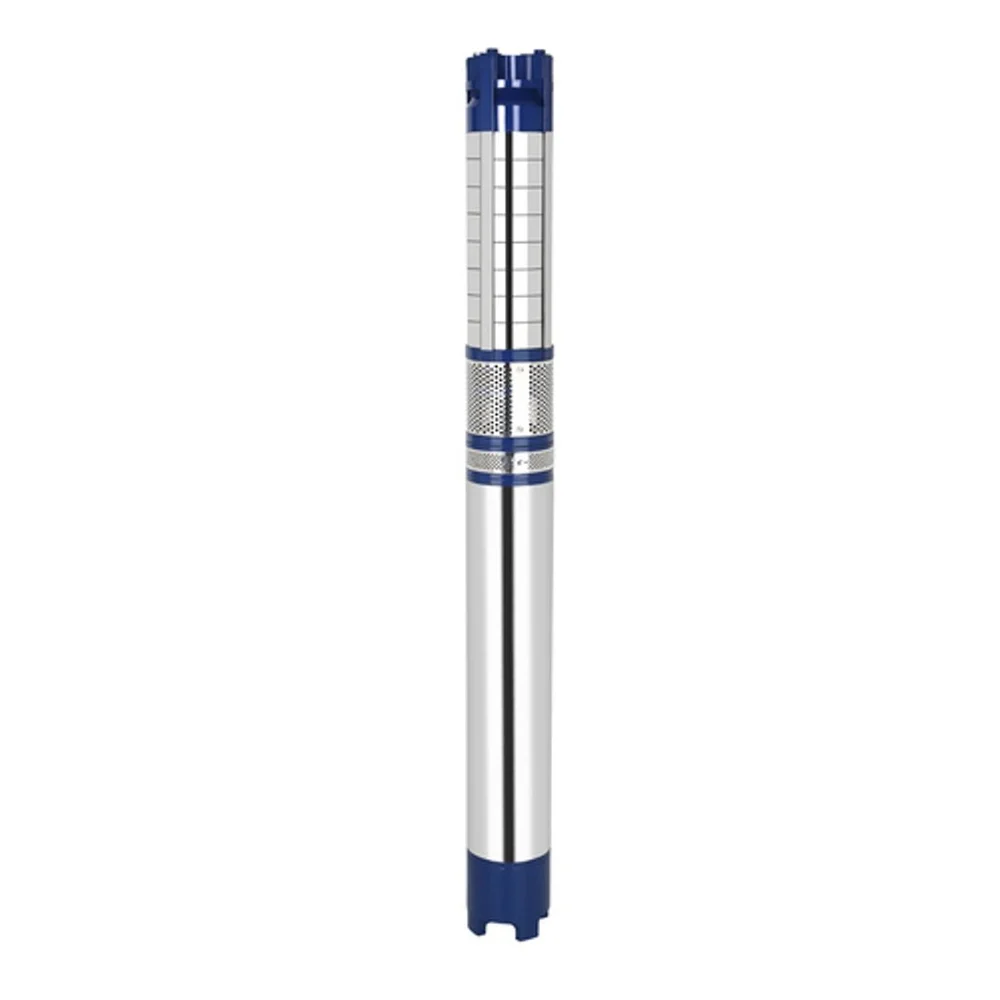

V-6 Heavy Industrial Submersible Pump Sets
The V-6 series represents our most powerful submersible pump sets, engineered for extreme industrial applications requiring either ultra-high head (K-Type) or massive discharge volumes (Q-Type). Built with military-grade stainless steel components for maximum durability.
Pump Type Comparison:
| Parameter | K-Type (High Head) | Q-Type (High Discharge) |
|---|---|---|
| Max. Discharge | 750 LPM | 1300 LPM |
| Min. Discharge | 45 LPM | 300 LPM |
| Max. Head | 1500 Feet | 600 Feet |
| Per Stage Head | 50 Feet (Standard) 70 Feet (Optional) |
45 Feet |
Key features include:
- 30% lower power consumption than industry standards
- Complete 304/316 stainless steel construction
- Special sand and mud proof design
- Military-grade shaft and bearings
- Optional corrosion-resistant coatings
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Range | 3.0 HP to 30.0 HP (440V, 50Hz AC Three Phase) |
| Speed | 2800 RPM |
| Bowl Material | Special Designed SS 304 Grade |
| Operating Temperature | -10°C to 60°C |
| Max. Submersion Depth | 200 meters |
| Motor Protection | IP68, Thermal Overload Protection |
Engineering Advantages
High Efficiency
Optimized impeller design delivers maximum output with minimal energy
Industrial Grade
Built for 24/7 operation in harsh environments
Sand Protection
Multi-stage filtration prevents abrasive damage
Custom Configurations
Available in various stages for specific head requirements
Pump Type Selection Guide
K-TYPE
High Head Configuration
- Max Head: 1500 Feet
- Discharge: 750 LPM
- Per Stage: 50-70 Feet
- Ideal for deep well applications

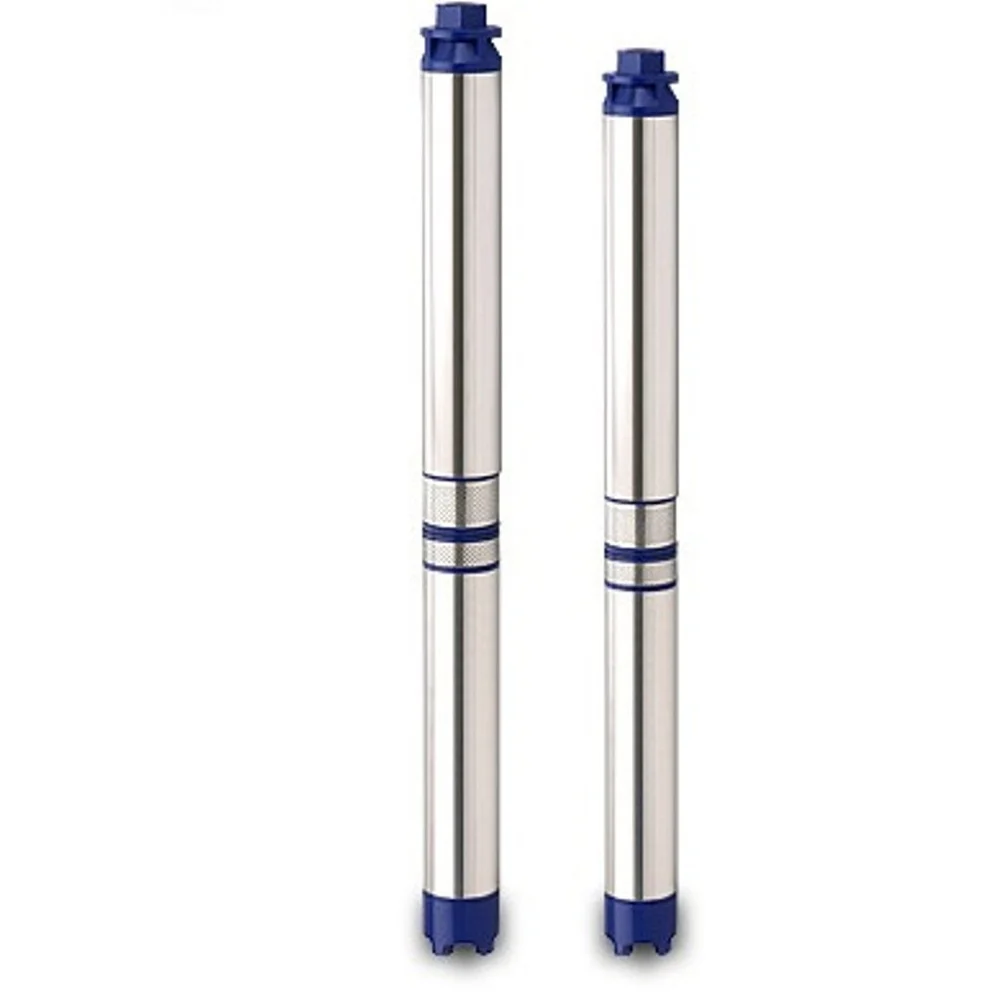

Q-TYPE
High Discharge Configuration
- Max Head: 600 Feet
- Discharge: 1300 LPM
- Per Stage: 45 Feet
- Ideal for large volume transfer
Industrial Applications
Mining Dewatering
High-head pumping in deep mine shafts
Municipal Water
City-wide water supply systems
Fire Protection
High-pressure water supply for firefighting
Process Industries
Chemical, petrochemical and power plants
